Gauges
Gauge Layout Window
Open the "Gauge Layout" window by going to Logging -> Gauges or CTRL+F
Add Gauge
Right Click on the Gauge Layout screen to add a gauge type to the window
- Load Layout: Allows you to load a saved gauge layout.
- Save Layout: Allows you to save the current gauge layout
- Lock Layout: Allows you to lock the gauges so they cannot be moved accidentily
Select Log Item
Right Click on the gauge and select the item you would like to be displayed.
- Define Gauges: Opens the Define Gauges window to customize the selected gauge
- Remove Gauge: Removes selected gauge from the layout.
Define Gauge

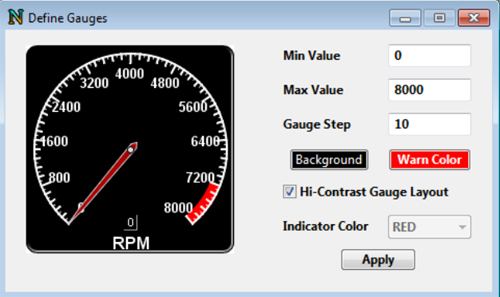

To change the Gauge parameters Right Click on the gauge and select "Define Gauge" and it will bring up this window
- Min value - The starting point for the gauge (lowest reading).
- Max value - This is the highest value for the needle and bar gauges
- Gauge Step - This is the step between major ticks on needle and bar gauges.
- Background - Changes the color of the gauge background
- Warn Color - Above the max value the gauge text will change to this color.
- Hi-Contrst - Will change the default colors to a higher contrast for easier viewing
- Indicatr Color - Changes the color of the indicator light
Gauge Resize
- Shift + UP or Shift + RIGHT : expand gauge
- Shift + DOWN or Shift + LEFT : shrink gauge
